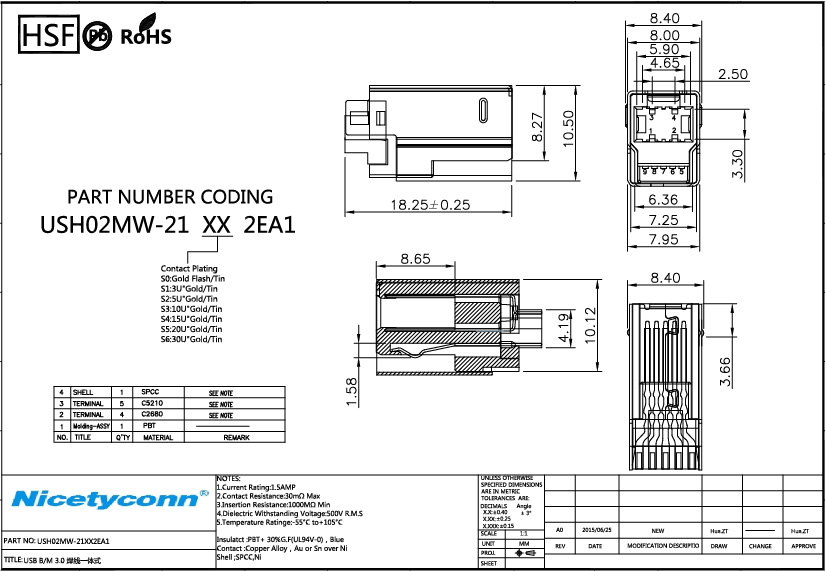

3.0 mm B/M Welded Wire USB |
|
Specification: |
|
Current Rating: 1.5AMP |
|
Contact Resistance: 30mΩ Max |
|
Insertion Resistance: 1000MΩ Min |
|
Dielectric withstanding voltage: 500V R.M.S |
|
Temperature Range: -55oC to +105oC |
|
Insulator: PBT+30% GF(UL94V-0), Blue |
|
Contact: Copper Alloy, Au or Sn over Ni |
|
Shell; SPCC.Ni |
